Managing a Space

This guide explains how to create, start, stop, update, edit, and delete spaces in knot.

Creating a Space

  1. Navigate to the Templates page, click the menu icon (three dots) next to the desired template, and select Create Space.

    Create Space
    Create Space

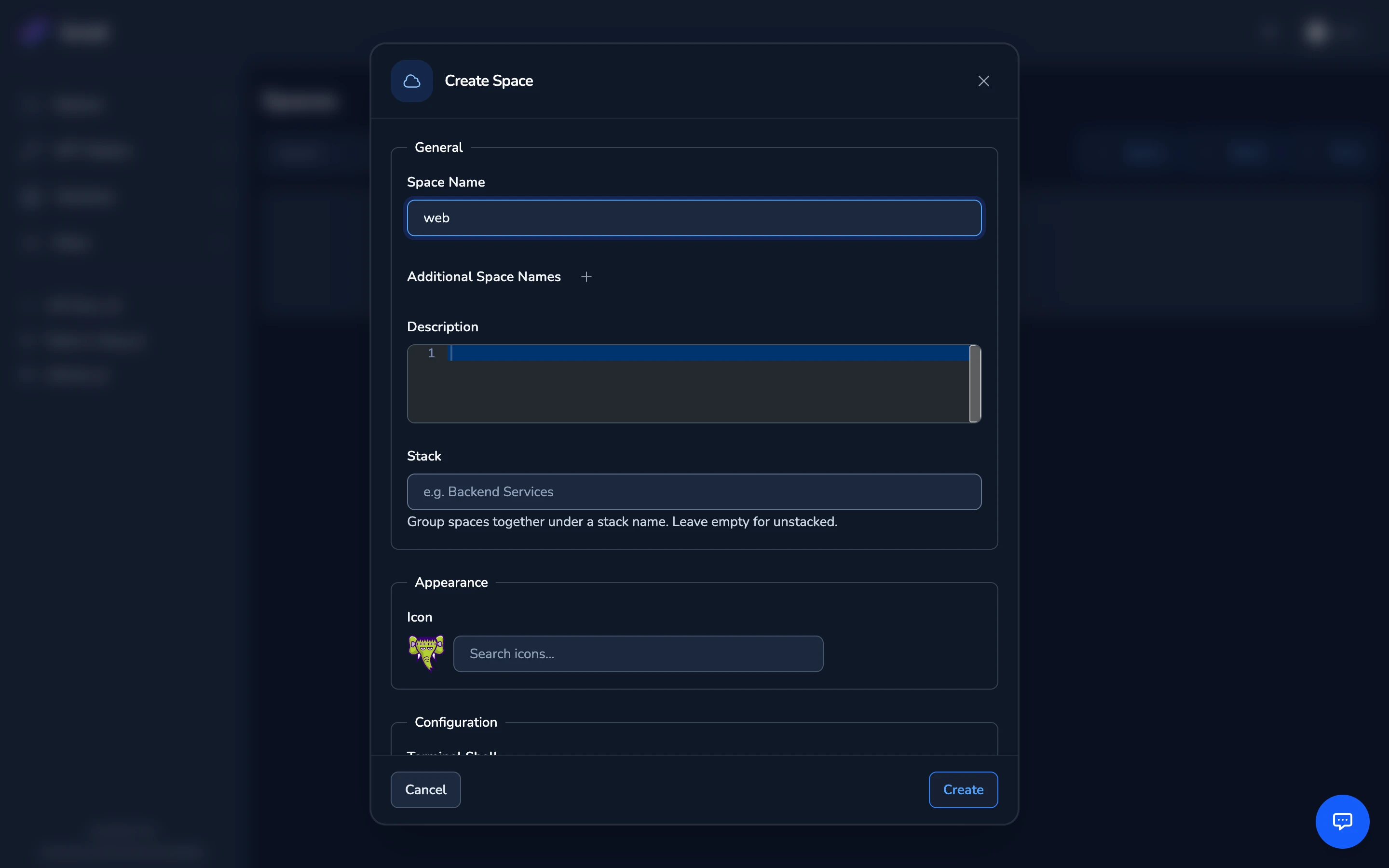

  2. Complete the form for the new space:

    • Name: The name of the space.
    • Description: (Optional) A description for the space.
    • Icon: (Optional) An icon for the space. By default, the template’s icon will be used if one is set.
    • Additional Space Names: Add additional names for the space by clicking the + icon. This is useful for accessing the space under multiple domain names when using the web proxy service.
    • Terminal Shell: The shell to use for the terminal. By default, the user’s profile shell is used.
    • Custom Fields: If the template includes custom fields, they will appear here. Set values for each field as needed.
    • Start Space on Create: If checked, the space will start automatically after creation.

  3. Click Create Space to finalize the process.

Admins may see the Create Space For option, allowing them to create spaces on behalf of other users. Selecting this option will prompt for the user under whom the space will be created.

Starting a Space

  1. Navigate to the Spaces page.
  2. Click the menu icon next to the space and select Start.
    Start Space
    Start Space

  • The space’s status will change to Starting, and once running, it will display as Running.

  • Icons will appear in the services column, providing access to features such as the web terminal.

    Running Space
    Running Space

Service Icons:

  1. VNC: Opens a new window connecting to a VNC server running within the space.
  2. Code Server: Opens a new window running Code Server.
  3. VSCode Tunnel: Displays a red icon if the VSCode tunnel is not configured. When functioning, it matches the other icons. Clicking it opens a web terminal connected to the VSCode tunnel service.
  4. Web Terminal: Provides shell access to the space via a web-based terminal.
  5. Ports: Displays a menu of web interfaces and exposed ports for the space.
  • Not all icons will be present. Their availability depends on the features enabled in the template and the user’s permissions.
  • Spaces created from manual templates do not have a Start option. They start automatically when their agent connects to the server.

Stopping a Space

  1. Click the menu icon next to the running space.
  2. Select Stop.
    Stopping a Space
    Stopping a Space
  • The Stop button is a split button:
    • Stop: Stops the space.
    • Restart: Stops and then restarts the space.

Stopping a space will result in the loss of all data in memory that is not stored on a persistent volume. However, volumes used by the space will not be deleted.

Updates

If the template used by a running space is updated, an Update Available badge will appear:

Pending Update
Pending Update

To apply the update:

  1. Stop the space.
  2. Start it again.
  • Any volumes added to the template will be created when the space starts.
  • Any volumes removed from the template will be deleted, along with their data.

Editing a Space

  1. Select Edit from the space’s menu.
  2. Update the space’s details, such as its name, icon, or additional names.
  • Additional URLs are supported immediately after the space is successfully saved.

Deleting a Space

Deleting a space will permanently delete its volumes and all associated data.

  1. Ensure the space is stopped. Only stopped spaces can be deleted.
  2. Select Delete from the space’s menu.
  3. Confirm the action in the dialog that appears.
  • When a space is deleted, all resources are freed, and all volumes and their data are removed.
