Single Server

Rather than deploying knot within a Nomad cluster, it can be deployed on a single server by running the binary directly (as shown in the quick start guide) or by using Docker or Podman. In this example, we’ll use Docker and Docker Compose, along with Cloudflare to provide valid SSL certificates.

While this guide uses Cloudflare, other providers can also be used with Caddy to achieve the same results.

The installation will use BadgerDB for storing users, space data, templates, etc. However, any of the supported storage backends can be used.

What You’ll Need

To follow this guide, ensure you have the following:

• A Cloudflare account (other similar providers might work, but this guide focuses on Cloudflare).
• A registered domain name set up with Cloudflare’s name servers.
• The IP address of the server you are installing to.
• A machine with a clean install of Ubuntu 22.04, with Docker and Docker Compose installed.

For this guide, we’ll assume:

• The virtual machine has an IP address of 192.168.0.10.
• The following domain names will be used:
  • knot.getknot.dev
  • *.knot.getknot.dev
  • *.tunnel.getknot.dev

Configuring Cloudflare

Creating an API Key

Caddy requires the ability to create DNS records for your domain to handle SSL certificate validation. This requires a Cloudflare API key:

1. Log in to your Cloudflare dashboard.
2. Navigate to Profile > API Tokens.
3. Click Create Token and select the preset template for “Edit Zone DNS.”

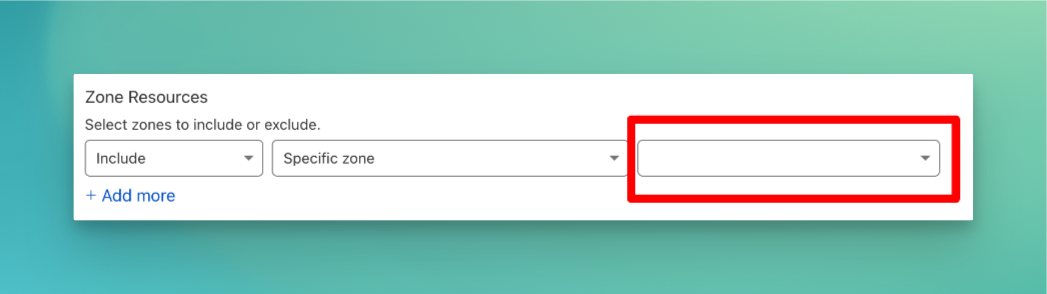

4. Under Zone Resources, select the domain you’ll use for this project.



5. Click Continue to Summary > Create Token.
6. Copy the API token and save it—don’t lose this, as you’ll need it later.

Adding DNS Records

To configure the required DNS records, go to your Cloudflare dashboard, select your domain, and add the following A records to point the domain names to your machine’s IP. Ensure these records are not proxied if using private IPs.

Configuring Your Server

You’ll need access to the terminal of the machine you’ll use as your development server. Here’s how to set up the environment:

1. Setting Up a Project Directory

First, create a folder to store everything related to your configuration and data:

mkdir knot
cd knot

2. Required Files

Inside the knot directory, create the following files with these exact contents (make adjustments where specified):

Environment Variables

This file will hold necessary environment configurations. Replace placeholders like <your key>, domain names, and IP address with your actual values.

CLOUDFLARE_KEY=<your key>
DOMAIN=knot.getknot.dev
TUNNELDOMAIN=tunnel.getknot.dev
IP=192.168.0.10

KNOT_ENABLE_TOTP=false

KNOT_LISTEN_AGENT=0.0.0.0:3001
KNOT_AGENT_ENDPOINT=${IP}:3001
KNOT_LISTEN_TUNNEL=0.0.0.0:3010
KNOT_URL=https://${DOMAIN}
KNOT_WILDCARD_DOMAIN=*.${DOMAIN}
KNOT_TUNNEL_DOMAIN=${TUNNELDOMAIN}
KNOT_BADGERDB_ENABLED=true
KNOT_BADGERDB_PATH=/database

Note: If you are installing this on an internet-connected machine with a public IP address, change KNOT_ENABLE_TOTP=false to KNOT_ENABLE_TOTP=true. Also, ensure that none of the ports are directly accessible from the internet.

Docker Compose Configuration

This file defines the services, their environment variables, and the networks they’ll use:

services:
  caddy:
    image: paularlott/knot-caddy
    env_file:
      - env
    ports:
      - "80:80"
      - "443:443"
    networks:
      - caddy_network
    volumes:
      - ./caddy-data:/data
      - ./Caddyfile:/etc/caddy/Caddyfile

  knot:
    image: paularlott/knot
    hostname: knot1
    env_file:
      - env
    ports:
      - "3001:3001"
    networks:
      - caddy_network
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./database:/database
    user: root:root

networks:
  caddy_network:

Caddy Configuration

This file handles certificates and proxies requests between the front end and your services. Use the following template:

{
  admin 127.0.0.1:2019
  storage file_system {
    root /data
  }
}

{$DOMAIN} {$KNOT_WILDCARD_DOMAIN} {
  tls {
    dns cloudflare {$CLOUDFLARE_KEY}
    resolvers 1.1.1.1
  }

  log {
    output stdout
    level INFO
    format transform "{common_log}"
  }

  encode zstd gzip

  reverse_proxy knot:3000 {
    transport http {
      tls
      tls_insecure_skip_verify
    }
  }
}

*.{$TUNNELDOMAIN} {
  tls {
    dns cloudflare {$CLOUDFLARE_KEY}
    resolvers 1.1.1.1
  }

  log {
    output stdout
    level DEBUG
    format transform "{common_log}"
  }

  encode zstd gzip

  reverse_proxy knot:3010 {
    transport http {
      tls
      tls_insecure_skip_verify
    }
  }
}

3. Starting the Environment

With everything in place, the server can be started. The -d option keeps the server running in the background.

Run this command from inside the project directory:

docker compose up -d

Accessing Knot

Access the web interface at https://knot.getknot.dev. If everything works as expected, you should see the setup screen for knot.

Installing Knot

Follow the quick start guide to Create the Admin User.
